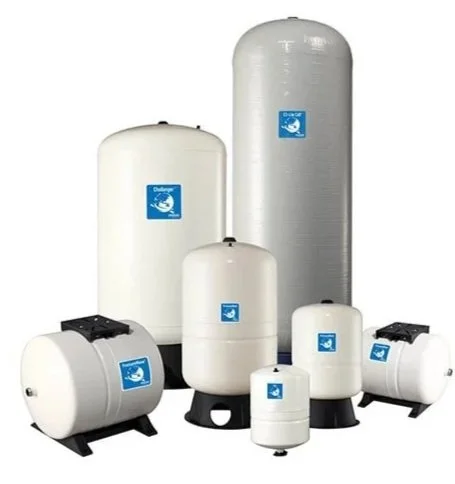

PRESSURE TANKS
PUMP APPLICATIONS
PressureWave™ series
PressureWave™ tanks undergo rigorous testing and inspection throughout the production process to ensure optimum structural integrity and to ensure they meet the highest standard in terms of performance and material certifications.
PressureWave™ tanks are the number one selling tanks in the industry and are the top choice for the world’s leading pump manufacturers and distributors.
Applications
PressureWave™ tanks are superior quality, versatile pressure vessels suitable for a range of applications including:
- Booster systems
- Well systems
- Irrigation systems
- Thermal expansion
- Hydronic heating expansion
- Hydraulic hammer arresting
- Clean water backwash for Ultra-Filtration systems
Operation Conditions:
- Capacity: 2 – 150 liter / 0.5 – 40 gallon
- Maximum working pressure: 10 bar / 150 psi
- Factory pre-charge: 1.9 bar / 28 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- Maintenance Free
- Diaphragm design
- Patented stainless steel water connection
- Virgin polypropylene liner
- Two-part polyurethane, epoxy primed paint finish
- Leak-free, O-ring sealed air valve cap
- Inline models equipped with reinforced connection plate (RCP)
Challenger™
With a chlorine resistant 100% butyl diaphragm, incorporating a precision molded polypropylene liner, the Challenger™ Series tanks offer superior air and water separation. The CAD-2 diaphragm and liner assembly containing drawdown water are sealed together with a positive lock internal clench ring. An ‘air buffer’ prevents the water chamber from being in contact with the tank wall in order to minimize condensation issues.
Constructed with FDA compliant high-grade butyl and polypropylene, the diaphragm assembly seals water in a true non-corrosive chamber. The air chamber is sealed with a fixed O-ring and closed cell foam which will ensure years of leak free operation and eliminate the need for regular servicing.
The exterior comprises a two-part polyurethane paint finish over an epoxy undercoating which guarantees hundreds of hours of UV and salt spray protection.
As with all GWS products Challenger™ tanks are quality tested throughout the production process to ensure their structural integrity. Maintenance free, these tanks are the best steel pressure vessels on the market today, and represent a cost effective solution.
Applications
Challenger™ tanks are ideally suited for a wide range of applications including:
- Booster systems
- Well systems
- Irrigation systems
- Thermal expansion
- Hydronic heating expansion
- Hydraulic hammer arresting
- Clean water backwash for Ultra-filtration systems
Operation Conditions:
- Capacity: 60 – 450 liter / 15 – 120 gallon
- Maximum working pressure: 10 bar / 150 psi
- Factory pre-charge: 1.4 bar / 20 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- Maintenance Free
- Diaphragm design
- Patented stainless steel water connection
- Virgin polypropylene liner
- Condensation reducing design
- Two-part polyurethane, epoxy primed paint finish
- Leak-free, O-ring sealed air valve cap
C2Lite CAD™ series
Offering a lightweight composite solution with proven performance, the C2Lite CAD™ series has been designed with the patented controlled action diaphragm designs of GWS Challenger™ tanks.
What sets the C2Lite CAD™ apart from other composite tanks, is that it doesn’t hide tired old bag technology in a plastic shell; the patented CAD2 diaphragm design is considerably stronger and will not crease or deteriorate. The C2Lite CAD™ features a chlorine resistant 100% butyl diaphragm with precision molded copolymer polypropylene liner for superior air and water separation. The patented design allows each size tank to offer a properly sized water chamber matched to the drawdown performance of the tank.
Easy to install, weather resistant and engineered to withstand extreme environmental conditions, the C2Lite CAD™ design cannot be beaten when it comes to performance and durability and are the best quality composite vessels available today.
As with all GWS products C2Lite CAD™ tanks are quality tested throughout the production process to ensure their structural integrity.
Applications
The C2Lite CAD™ series is ideally suited to a wide range of applications including:
- Booster systems
- Well systems
- Irrigation systems
- Hydraulic hammer arresting
- Clean water backwash for Ultra-Filtration systems
Operating Conditions:
- Capacity: 60 – 450 liter / 15 – 120 gallon
- Maximum working pressure: 8.6 bar / 125 psi
- Pre-charge: 1.4 bar / 20 psi
- Maximum operating temperature: 49° C / 120° F
Features & Benefits:
- Patented CAD-2 diaphragm technology
- Unique 3-piece construction
- Reinforced plastic connection
- Durable continuous strand fiberglass sealed with epoxy resin
- Rugged copolymer polypropylene base
- Quality brass air stem with O-ring seal
- Condensation reducing design
(Ultra)Max™
As with all GWS products, these tanks are quality tested throughout the production process to ensure their structural integrity.
Applications
Suitable for high pressure applications, from Max ™ series and UltraMax™ series are suited for various applications including:
- High-rise buildings
- High pressure flushing
- Large scale irrigation systems
- Industrial applications
Advantages:
- Capacity: 2 – 100 liter / 0.5 – 26.4 gallon (Max™) 8, 24 & 100 liter / 2, 6 & 26 gallon (UltraMax™)
- Maximum working pressure: 16 bar / 232 psi (Max™) 25 bar / 363 psi (UltraMax™)
- Factory pre-charge: 4.0 bar / 58 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- High pressure design
- Diaphragm design
- Patented stainless steel water connection
- Virgin polypropylene liner
- Two-part polyurethane, epoxy primed paint finish
- Leak-free, O-ring sealed air valve cap
- Maintenance FreeInline models equipped with reinforced connection plate (RCP)
SuperFlow™ series
SuperFlow™ series tanks are ideally suited to applications where either high volumes or high pressures are required. With 8 liter up to 10,000 liter capacity models available, the larger volume SuperFlow series tank, are ideal for applications where PressureWave™, Max™, UltraMax™ and Challenger™ are not appropriate solutions.
Applications
- Booster systems
- Hydronic heating expansion
- Irrigation systems
- Hydraulic hammer arresting
- Commercial & industrial pressurization systems
Operation Conditions:
- Capacity: 8 – 10,000 liter / 2 – 2640 gallon
- Maximum working pressures: 10, 16 & 25 bar / 150, 232 & 363 psi
- Pre-charge: 4.0 bar / 58 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- Interchangeable membranes design
- 8 liter up to 10,000 liter capacity models
- Multiple pressure ratings of 10, 16 and 25 bar
- Built-in pressure gauge on select models
- Rugged copolymer polypropylene base
- Top mounted welded-on lifting lugs
VSF/VSD APPLICATIONS
FlowThru™ series
The FlowThru™ range of tanks is ideally suited for systems where the water stored in the tank is not circulated due to a maintained level of continuous pressure in the system. Every model in the range has been designed with a patented FlowThru™ connection which diverts system water into and, more importantly, out of the tank while the pump is running. This constant flushing action assures that the water in the tank remains as fresh as possible and eliminates the possibility of stagnant water during normal system operations.
Like the rest of GWS’s steel and composite tanks, the FlowThru™ incorporates our patented controlled action diaphragm-CAD2, which regulates movement and prevents the diaphragm from rubbing against the tank wall.
Global Water Solutions now guarantees the freshest water quality possible with the revolutionary FlowThru™ series design; available in both composite and steel models. Featuring GWS’s exclusive patented FlowThru™ technology, the possibility of stagnation has been eliminated, so you can rest assured that your system will provide the freshest water possible.
As with all GWS products, FlowThru™ tanks are quality tested throughout the production process to ensure their structural integrity. Steel models are capable of managing a maximum working temperature of 90°C/ 194°F, and composite models are capable of managing 49°C / 120°F.
Applications
- Pressure booster systems
- HVAC systems
- Cooling tower systems
- Evaporative condenser systems
- Spa systems
Operation Conditions:
- Capacity: 60 – 325 liter / 15 – 85 gallon
- Maximum working pressure: 8.6 bar / 125 psi
- Pre-charge: 1.4 bar / 20 psi
- Maximum operating temperature:90° C / 194° F (steel), 49° C / 120° F (composite)
Features & Benefits:
- Patented FlowThru™ technology for the freshest water
- Available in composite and steel
- Removes the risk of stagnant water
- Patented FlowThru™ connection, total recirculation of water
- Maintenance Free
HARSH ENVIRONMENTS
All-Weather™ series
All-Weather™ Series pressure tanks are suitable for a variety of applications where the tank requires more protection from harsh environments.
The Patented PLASTEEL shell ensures an impenetrable protective shielding against the harshest elements.
Applications
The All-Weather™ series is capable of resisting all weather conditions such as wind, rain, snow and sun, and is the perfect solution for marine or mining applications. The All-Weather™ series represents one of the greatest innovations in pressure tank technology today. As with all GWS products, these tanks are quality-tested throughout the production process to ensure their structural integrity.
Operating Condition:
- Capacity: 18 & 24 liter / 4.8 & 6.3 gallon
- Maximum working pressure: 10 bar / 150 psi
- Pre-charge: 1.9 bar / 28 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- Rugged polypropylene outer shell
- 10 bar pressure rating
- Diaphragm design
- Virgin polypropylene liner
- Patented stainless steel water connection
- Leak free O-ring sealed air valve cap
- Maintenance Free
M-Inox™ series
All M-Inox™ tanks have virgin polypropylene liners and FDA approved high grade butyl diaphragms. M-Inox™ tanks also feature a unique water connection that provides a dual air/water seal which prevents leaks and eliminates the need for ongoing maintenance.
As with all GWS products, these tanks are quality tested throughout the production process to ensure their structural integrity.
Applications
The M-Inox™ Series stainless steel tanks are designed for special demands and environments found in such industries as:
- Aerospace
- Pharmaceuticals
- Beverage
- Dairy
- Food handling equipment and machinery
Operation Conditions:
- Capacity: 8, 18 & 24 liter / 2.1, 4.8 & 6.3 gallon
- Maximum working pressure: 10 bar / 150 psi
- Pre-charge: 1.9 bar / 28 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- Made from high-grade stainless steel
- Diaphragm design
- Patented stainless steel water connection
- Virgin polypropylene liner
- Leak free and Maintenance Free
SHOCK ARRESTING
HydroGuard™ series
The HydroGuard™ series has been specifically designed for hydraulic hammer arresting applications. Featuring the latest diaphragm technology, HydroGuard™ shock arrestors are built to reduce or eliminate hydraulic shock, otherwise known as water hammer.
How HydroGuard™ shock arrestors work:
HydroGuard™ shock arrestors absorb pressure surges within waters or other fluids that are suddenly stopped or forced into other directions by fast closing valves. A high-grade butyl diaphragm is sealed within the vessel creating a barrier between the fluid and a compressible air chamber. The air acts as a cushion which compresses when the system pressure suddenly increases as a result of hydraulic shock. HydroGuard™ shock arrestors are best used at the point of shock and should be installed close to the valve or piping where shock originates from.
Applications
HydroGuard™ tanks are high quality, versatile shock arrestor tanks suitable for hydraulic hammer arresting and shock suppression in a wide range of applications including:
- Booster systems
- Plumbing installations (for example toilet, washing machine, dishwasher)
- Commercial bathrooms and sinks
- Solenoid valve protection
Operation Conditions:
- Capacity: 0.16 – 4 liter / 0.04 – 1.06 gallon
- Maximum working pressure: 10 bar / 150 psi
- Factory pre-charge: 1 or 4 bar / 15 or 58 psi
- Maximum operating temperature: 90° C / 194° F
Features & Benefits:
- Diaphragm design
- Patented sealed water connection
- Two-part polyurethane, epoxy primed paint finish
- Leak-free, O-ring sealed air valve cap
- Maintenance Free
- Adjustable air charge
